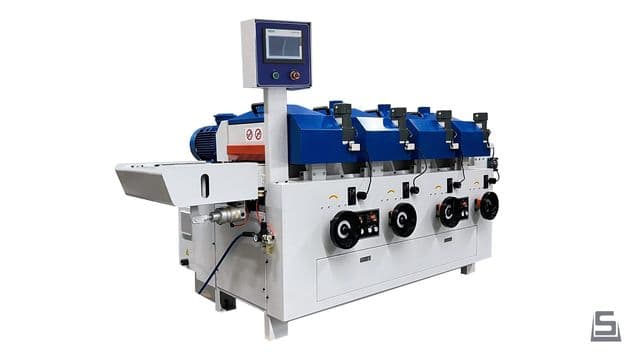

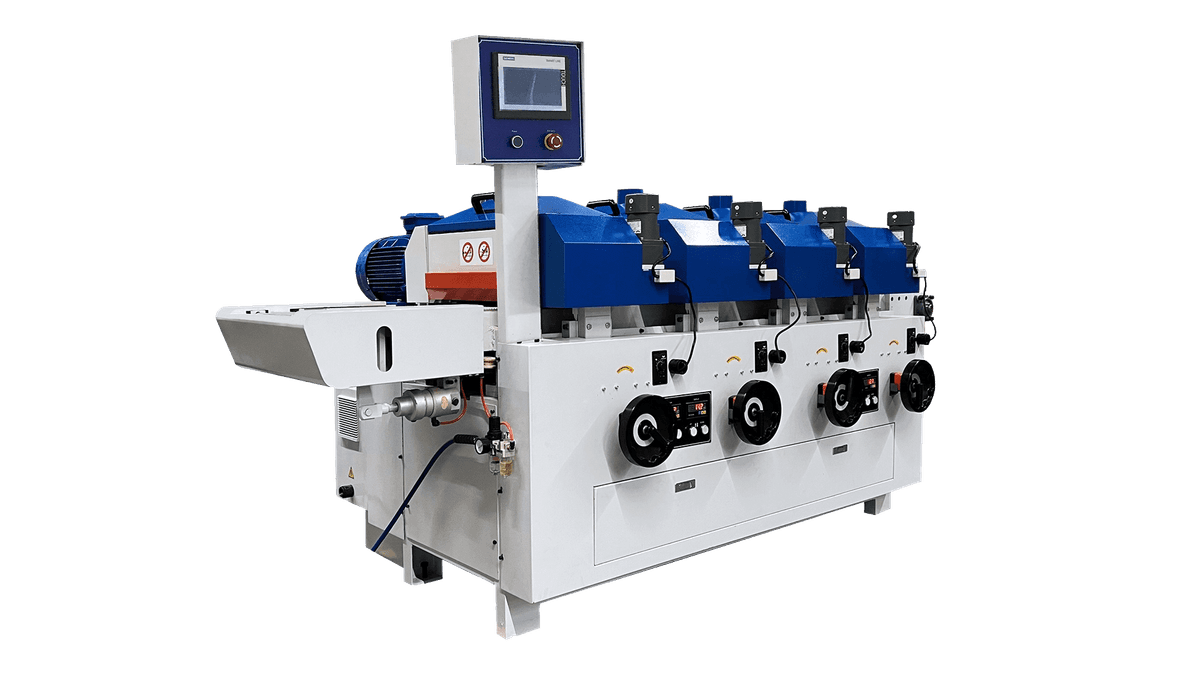

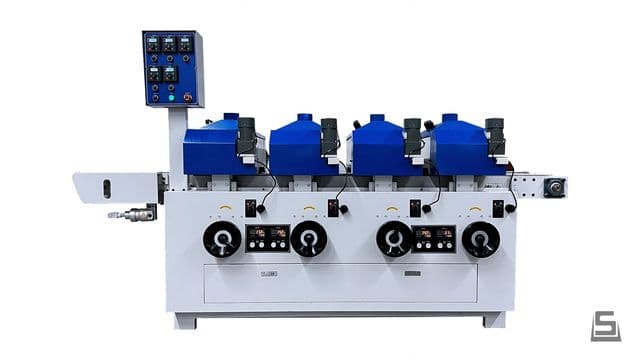

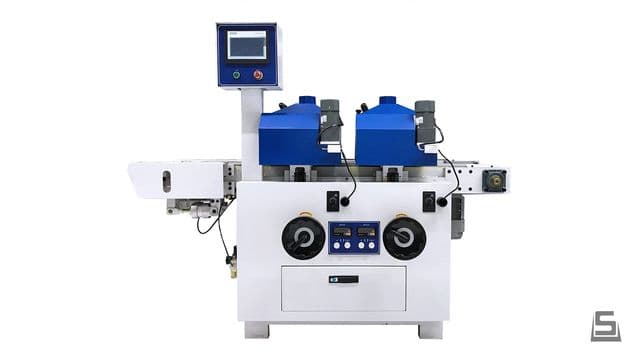

Structure brushing machine - SBL
Structuring

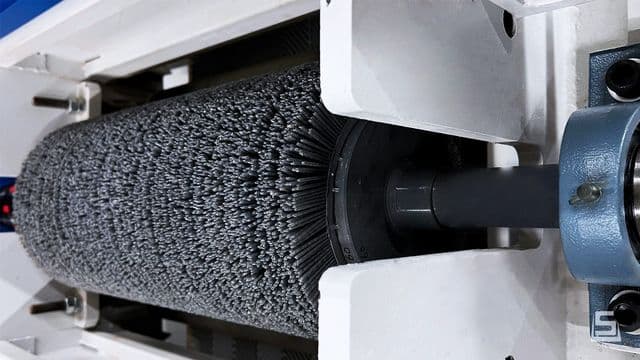

The Structure Brushing Machine offers power and precision. Engineered for manufacturers looking to create unique surface finishes. Creating the desired texture on wood requires a brushing machine with extensive adjustment options. The number and type of brushes (steel, bronze, Tynex) primarily determine whether a light or deep texture is achieved. Additional factors such as rotation direction, speed, pressure, and oscillation also influence the final result. We also offer machines equipped with cross-cutter and edge scraper units.
Contact us today for a quote, or visit our Test Center for a free demo!
Specifications
- Amount of brushes
- 1 - 4
- Maximum width of work piece
- 400 - 1400mm
- Rotational direction of brushes
- Both forward and reverse direction possible onall
- Motor power of brush
- 5,5 - 11kW
- Speed of brushes
- by Siemens inverter max 1.400rpm

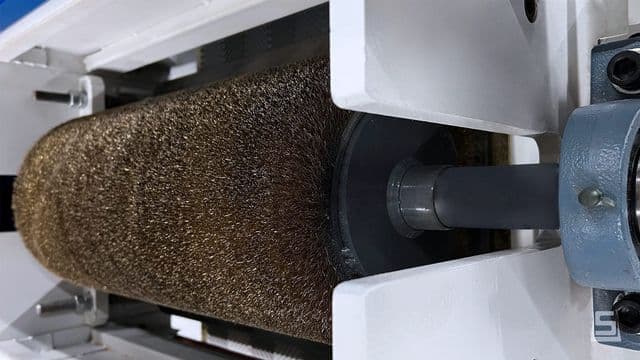

- Dimensions brushes
- Ø 200 x 410 - 1410mm
- Exhaust tube diameter on brush
- Ø 100mm
- Motor power transport belt
- 1,5kW
- Speed transport belt adjustable
- 5 - 20 m/min.
- Type of brushes available
- Multiple types of steel, Tynex,bronze
