Edge-scraper - ES
For smooth, hand scraped edges - perfect for precise industrial finishing

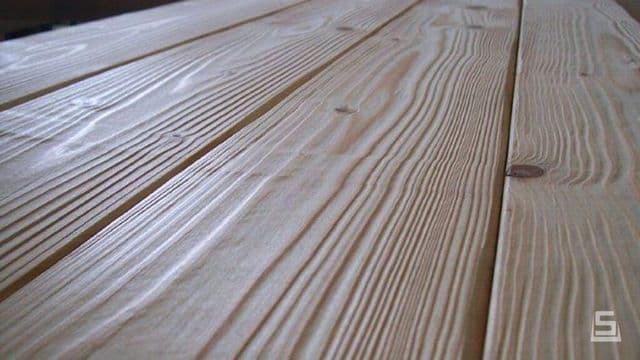

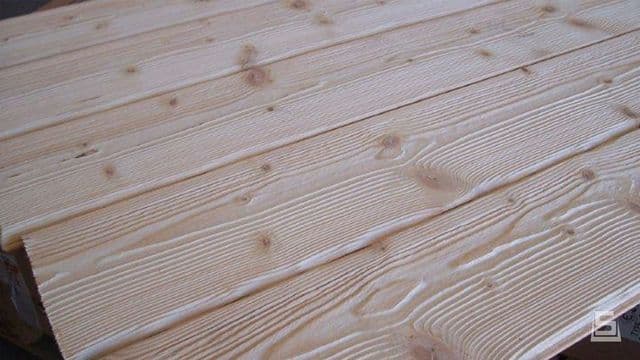

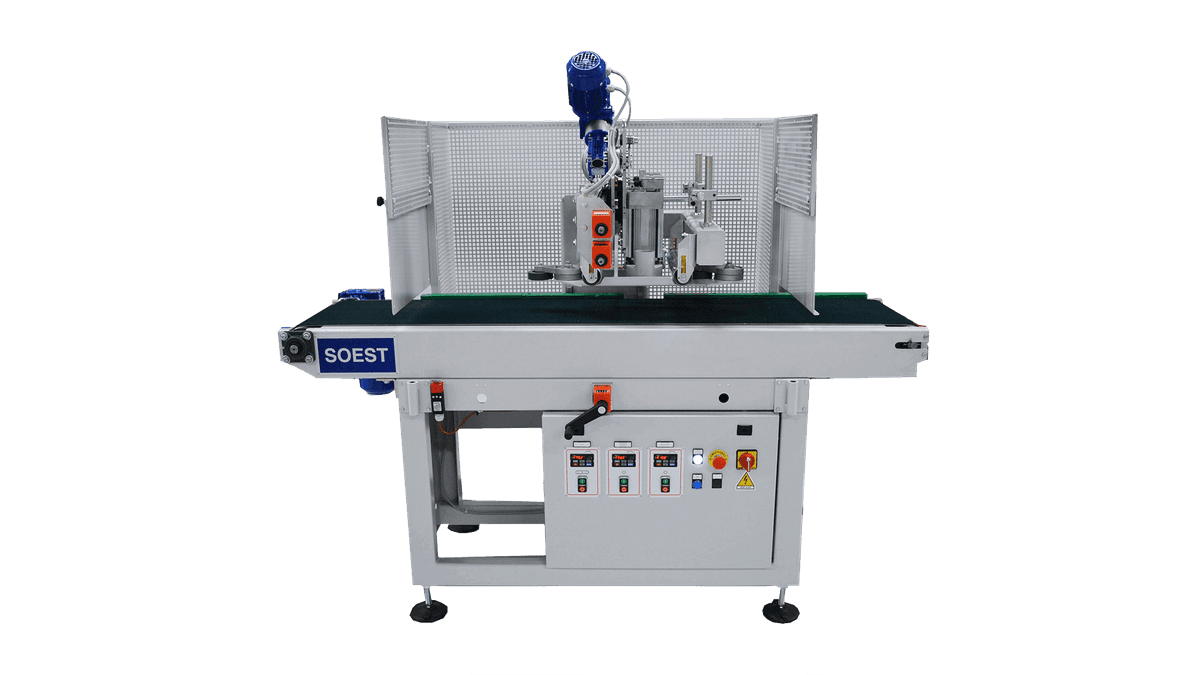

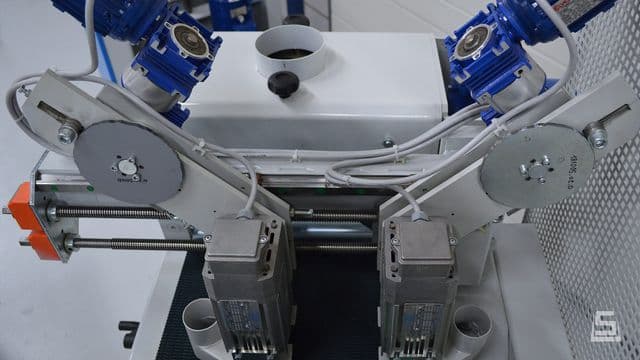

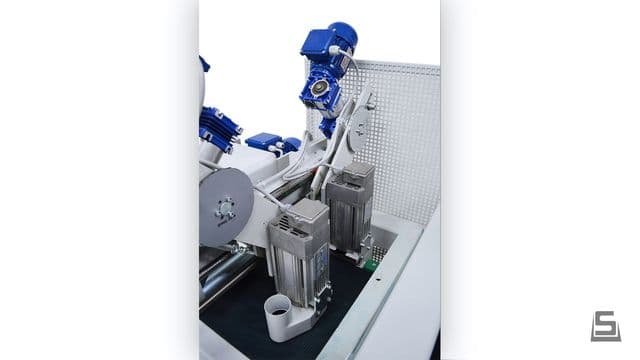

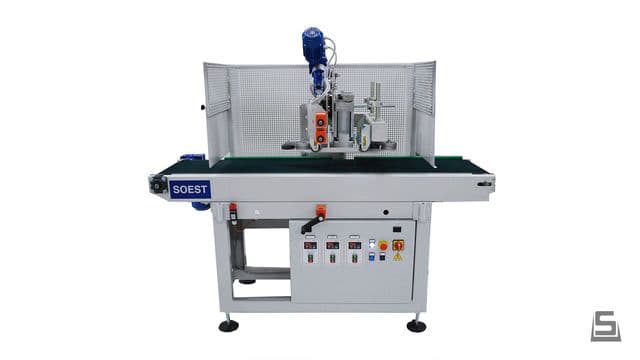

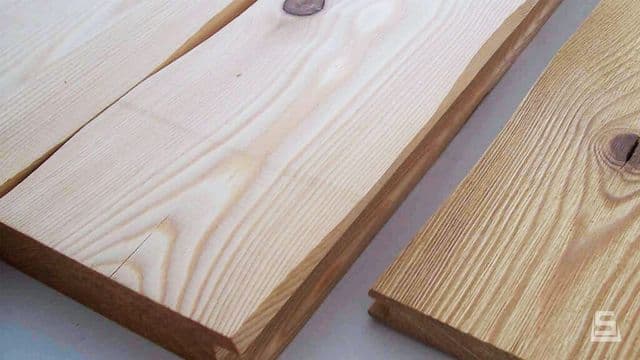

Simplify your edge-scraping process with our Edge-Scraper ES. A compact yet powerful machine perfect for creating a realistic hand-scraped effect on the edges of planks. This machine consists of two cutters that variates in height without a fixed pattern. The amount of hand scraping effect is adjustable.
Contact us today for a quote, or visit our Test Center for a free demo!
Specifications
- Machine length
- 1.920mm
- Machine width
- 1.200 or 1.400mm
- Machine height
- 1.500mm
- Working height
- 900 – 950mm
- Work piece thickness minimum - maximum
- 12 - 300mm
- Work piece width minimum
- 95mm
- Work piece width maximum
- 400 or 600mm
- Minimum length of work piece
- 350mm
- Motor power milling cutters
- 2 x 1.1kW
- Cutter tools
- 35º Ø 100 x 15mm
- Motor power irregular height movement
- 2 x 0,1kW
- Connection for dust extraction
- 2 x Ø 80mm
- Motor power conveyor belt
- 0.75kW
- Speed conveyor belt adjustable
- 5 - 25m/min
- Total installed power
- 3,2kW
- Dust extraction unit
- Notincluded
