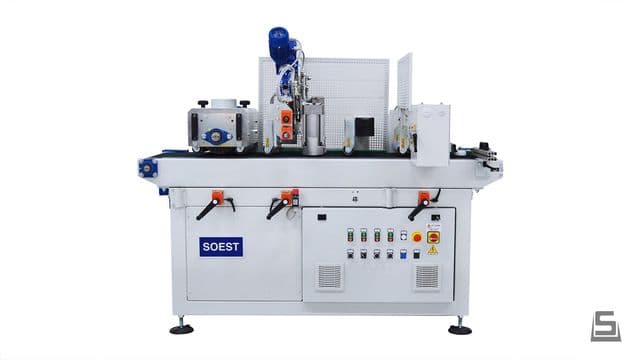

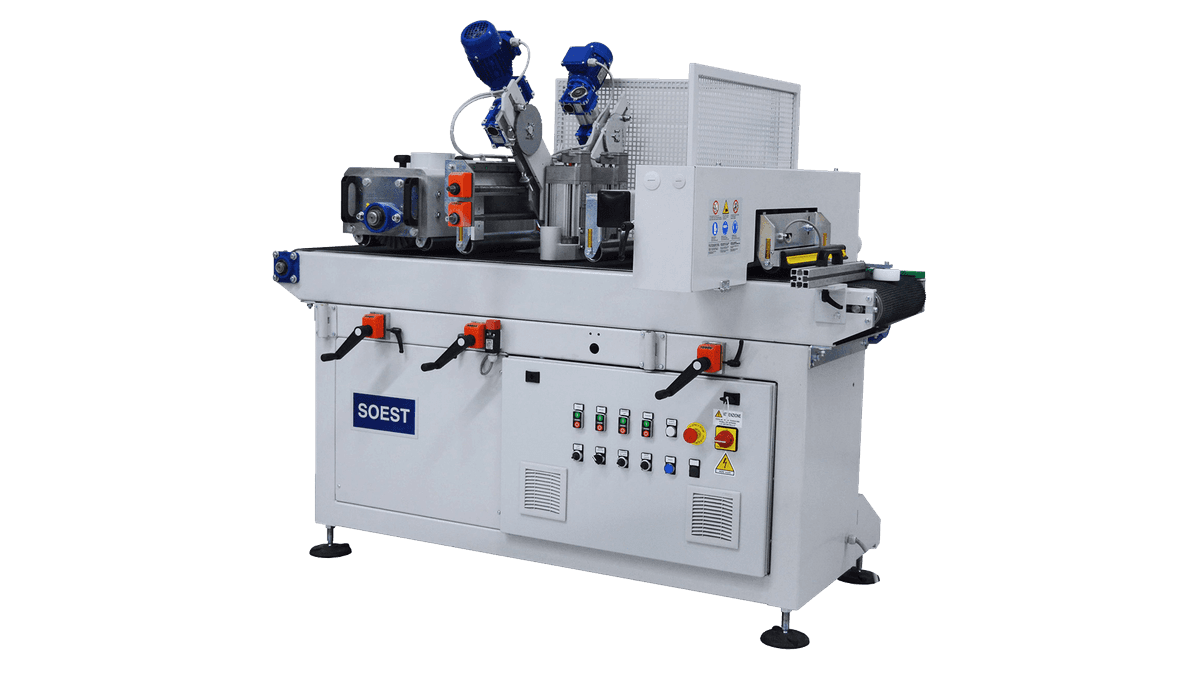

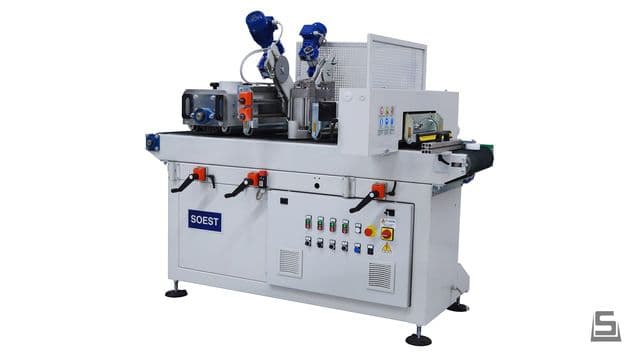

Cross-cutter / Edge-scraper - CC/ES
Versatile performance for woodworking and material finishing
Refine wood edges and give a saw-effect texture in one seamless step with our cross-cutter and edge-scraper combo.
Module CC: The making of a transverse structure (saw effect) to wooden floor parts is done with a cross sanding belt with a grit 12 or 16. Depending on the desired effect, the pressure and grit size of the sanding belt can be adjusted. A Tynex brush ensures that the floor parts can be finished immediately. The cross cutter can be used to the wooden surface as well as to pre-colored floor parts, resulting in a multi-colored surface.
Module ES: For making so-called hand-scraped edges. This consists of two cutters that variates in height without a fixed pattern. The amount of hand scraping effect is adjustable.
Contact us today for a quote, or visit our Test Center for a free demo!
Specifications
- Length machine
- About 1.550mm
- Width machine
- 1.500 or 1.700mm
- Height machine
- 1.500mm
- Working height
- 900 – 950mm
- Maximum height work piece
- 300mm
- Maximum width of work piece
- 400 or 600mm
- Minimum length of work piece
- 350mm
- Motor power conveyor belt
- 0.75kW
- Speed conveyor belt adjustable
- 5 - 25m/min
- Total installed power
- 10kW
- Dust extraction unit
- Notincluded
- Motor power sanding belt Cross cutter
- 2,2kW
- Grit belt
- 12 or 16grit
- Connection for dust extraction Cross cutter
- 1 x Ø 100mm
- Work piece thickness minimum - maximum
- 12 -300mm
- Work piece width minimum - maximum
- 95mm
- Work piece
- 400 or 600mm
- Motor power milling cutters
- 2 x 1.1kW
- Cutter tools
- 35º Ø 100 x 15mm
- Motor power irregular height movement
- 2 x 0,1kW
- Connection for dust extraction
- 2 x Ø 80mm
