Sanding

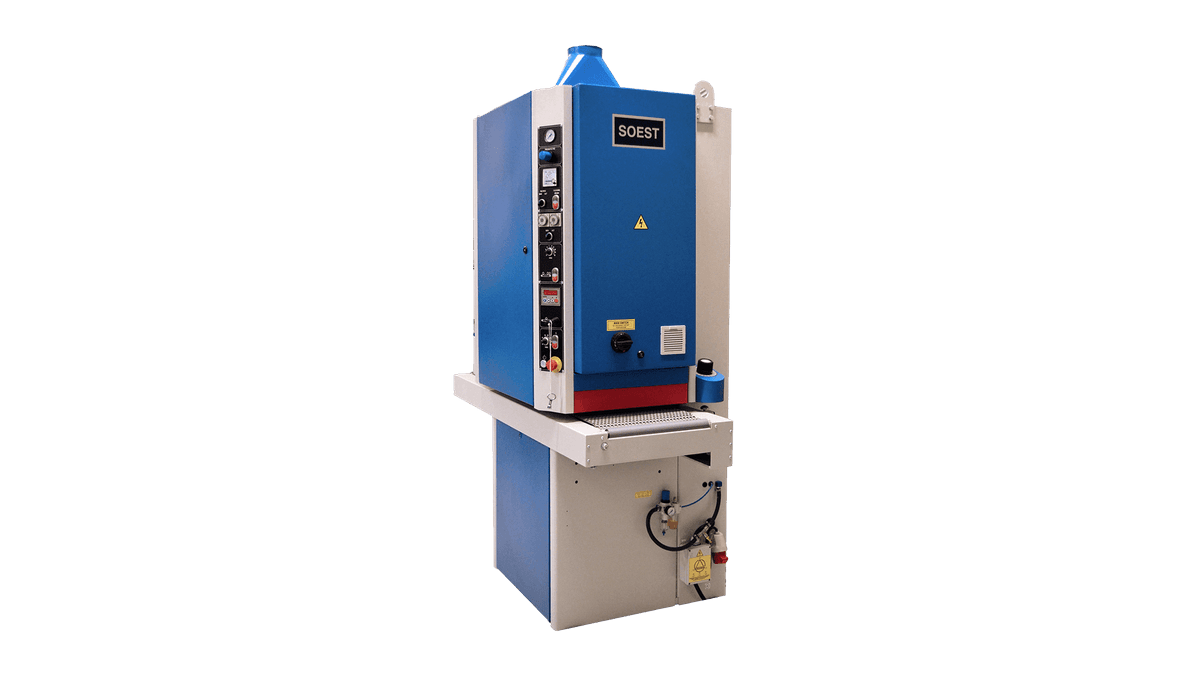

Belt sander - VD
For precise and efficient heavy-duty sanding

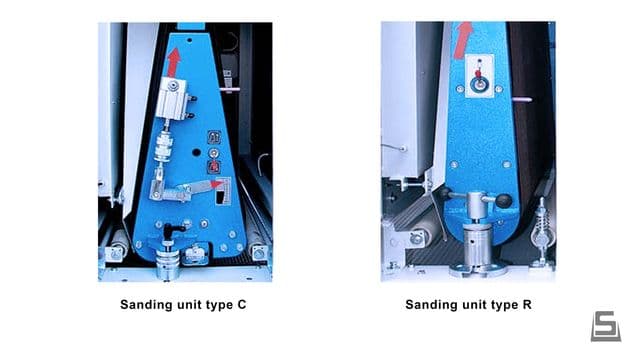

The Belt Sander VD combines power and precision sanding for professionals. Whether you're smoothing wood, metal, or composite materials, expect impeccable results. Our Belt Sander machines are available with upper and/or lower sanding with calibrating rollers, segmented shoes in the transversal direction, and/or wide belts, offering a wide range of possibilities. Options include machines for wide panels as well as more compact models for floorboards.
Contact us today for a quote, or visit our Test Center for a free demo!
Specifications
- Sanding belt length
- 1.900mm
- Sanding belt width
- 400 – 1300mm
- Working width pieces maximum
- 400 - 1300mm
- Working height from floor
- 850mm
- Work piece thickness
- 3-160mm
- Diameter roller
- Ø 160mm
- Roller type
- Steel orrubber
- Conveyor speed
- To bechosen
- Speed sanding belt
- To bechosen
- Exhaust power necessary
- 2.000 – 3.500 m3/h
- Exhaust connection diameter
- Ø150mm
- Power sanding belt
- 5,5 - 11kW
- Air pressure necessary
- 6bar
Ready to perfect your finish?
Tell us about your material and throughput — we'll design the line around it.
Request a quote
