Product handling

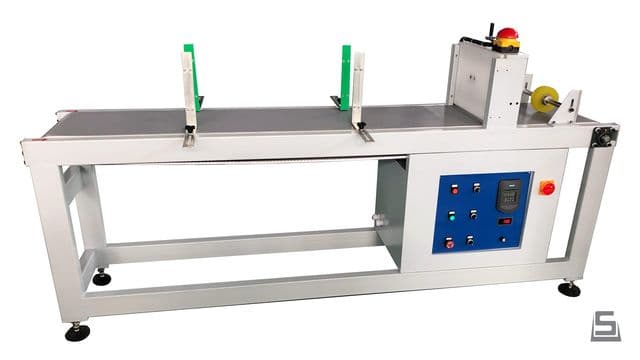

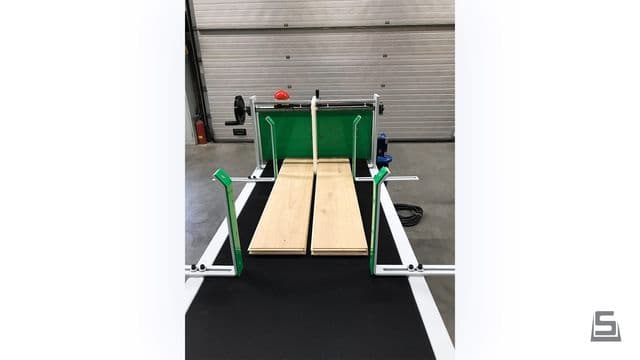

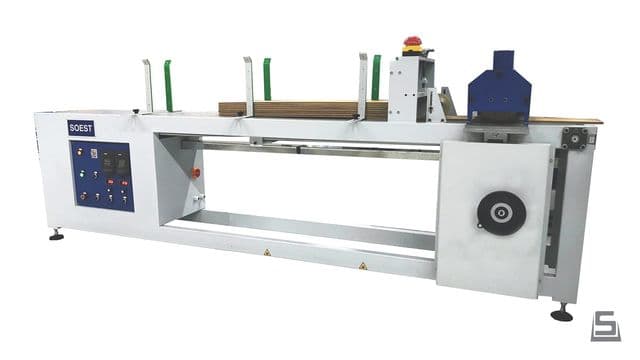

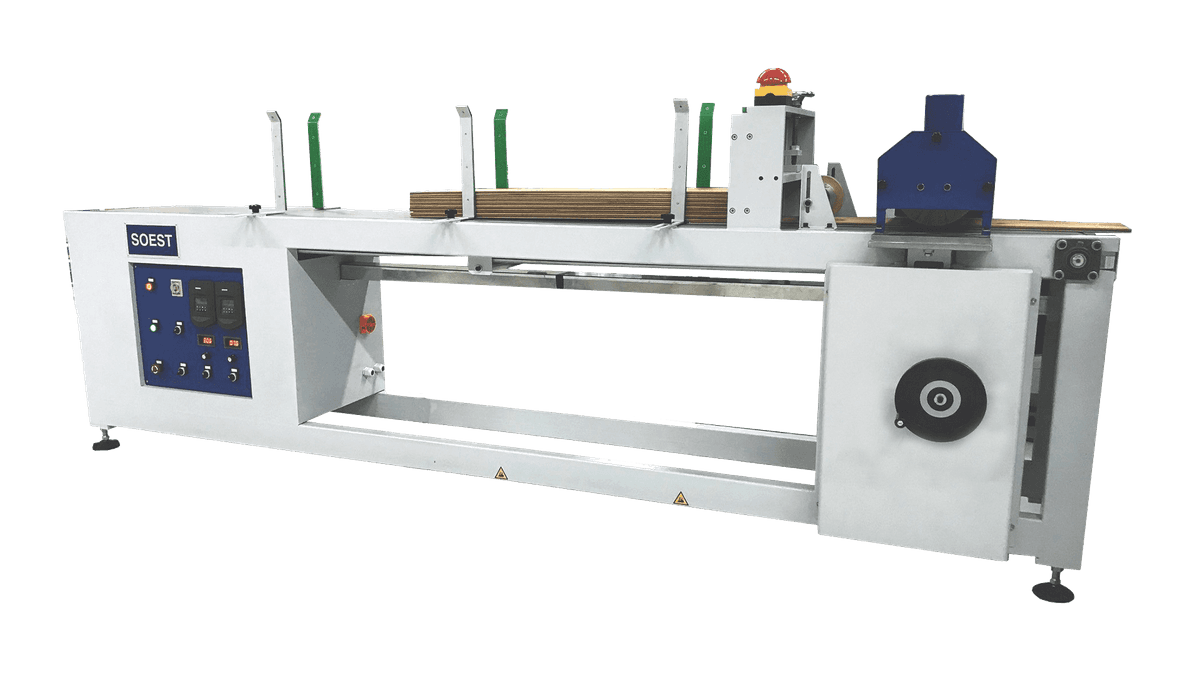

Infeed system - TB-H
Transport system for streamlined production
Ensure smooth and efficient material handling with our infeed system. Perfect for seamless integration into wood processing and coating lines. The conveyor belt with a magazine is designed for automatic infeed. It operates using a photocell that detects when a product has passed. Once detected, the belt stops for an adjustable time, creating the required gap between workpieces. Alternatively, the system can function without photocell detection, allowing for continuous infeed without gaps between the workpieces.
Contact us today for a quote, or visit our Test Center for a free demo!
Specifications
- Length machine
- 2.550 – 6.000mm
- Length conveyor available for stack
- 1.900 – 5.350mm
- Width workpieces
- 400 – 1.400mm
- Thickness workpieces
- 5 - 25mm
- Stack height maximum
- 300mm
- Working height
- 900mm
- Speed control by means of Siemens frequency inverter
- 9 - 27m/min
- Motor protection
- IP-55
- Power motor
- 0,75 – 1,5kW
