Pressing

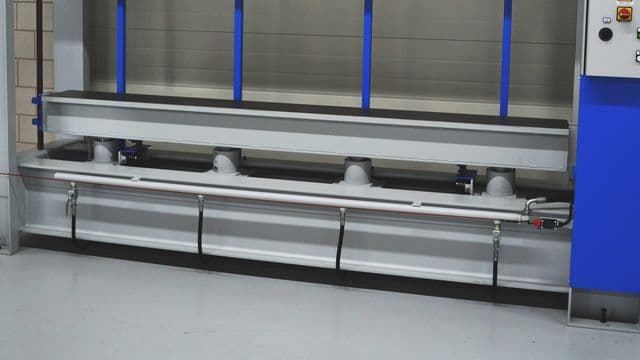

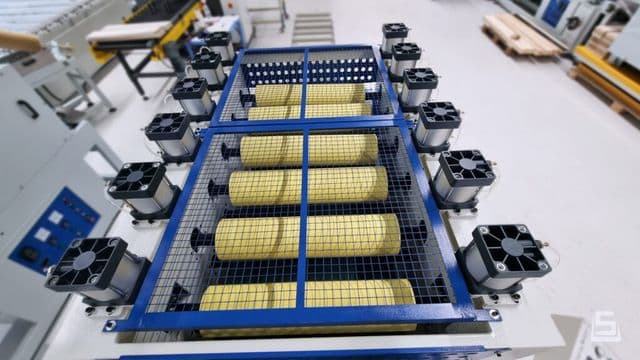

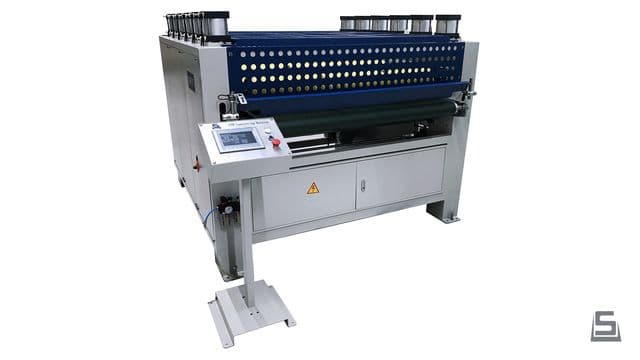

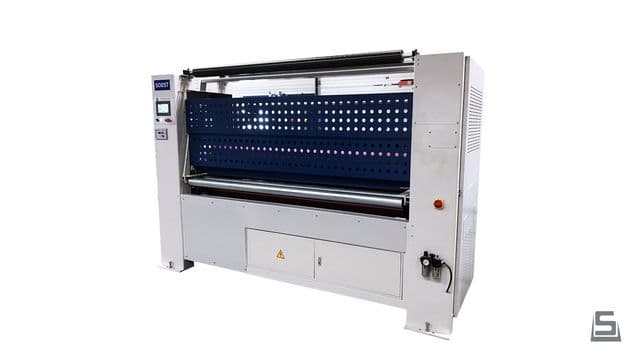

Roller press - CAL

For high-quality industrial material bonding

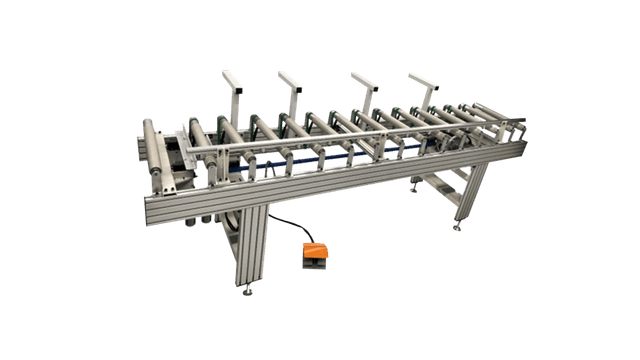

Roller conveyor - TR

Roller presses are mainly used in combination with PUR hot melt roller coaters. The choice between a single or multiple roller press, depends on factors like the type of adhesive, the product material and the production speed. Also, depending on the product, either steel or rubber rollers can be used.

Single roller presses are mostly used for sheet materials, like HPL, aluminium, PVC, et cetera.

Multiple roller presses are used for engineered flooring and other stiff materials which need a longer pressing time.

Specifications

Roller width
400 – 1.600mm
Maximum work piece width
350 – 1.550mm
Maximum work piece thickness
100mm
Working level from floor
1.020mm
Diameter pressing rollers
Ø 190mm
Amount of upper pressing rollers
6
Hardness rubber upper pressing rollers
90ºShore
Diameter cylinders
Ø 120mm
Pressure power rollers
1.350 kg perroller
Transport belt speed
10 - 30m/min
Power 1st driven upper pressing roller
0,37kW
Power conveyor belt
2,2 - 3kW
