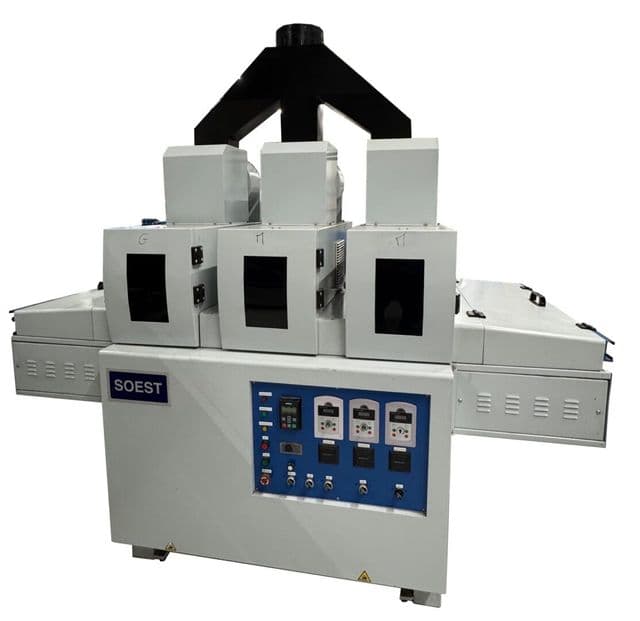

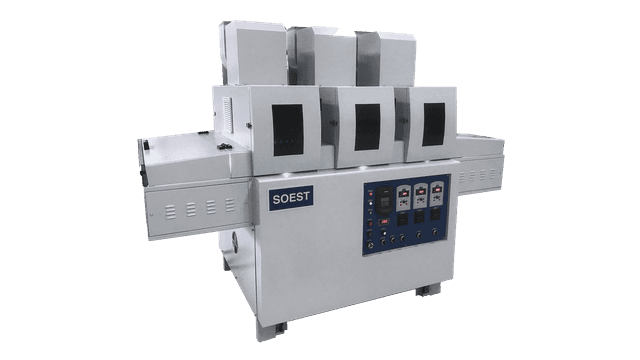

Soest UV Drying tunnel - UV3-400
Looking for a reliable second-hand machine? Explore our current selection of used machinery and showroom models. All machines are thoroughly inspected and ready for immediate use in your production process. From coaters to drying tunnels and high-quality equipment at a competitive price.

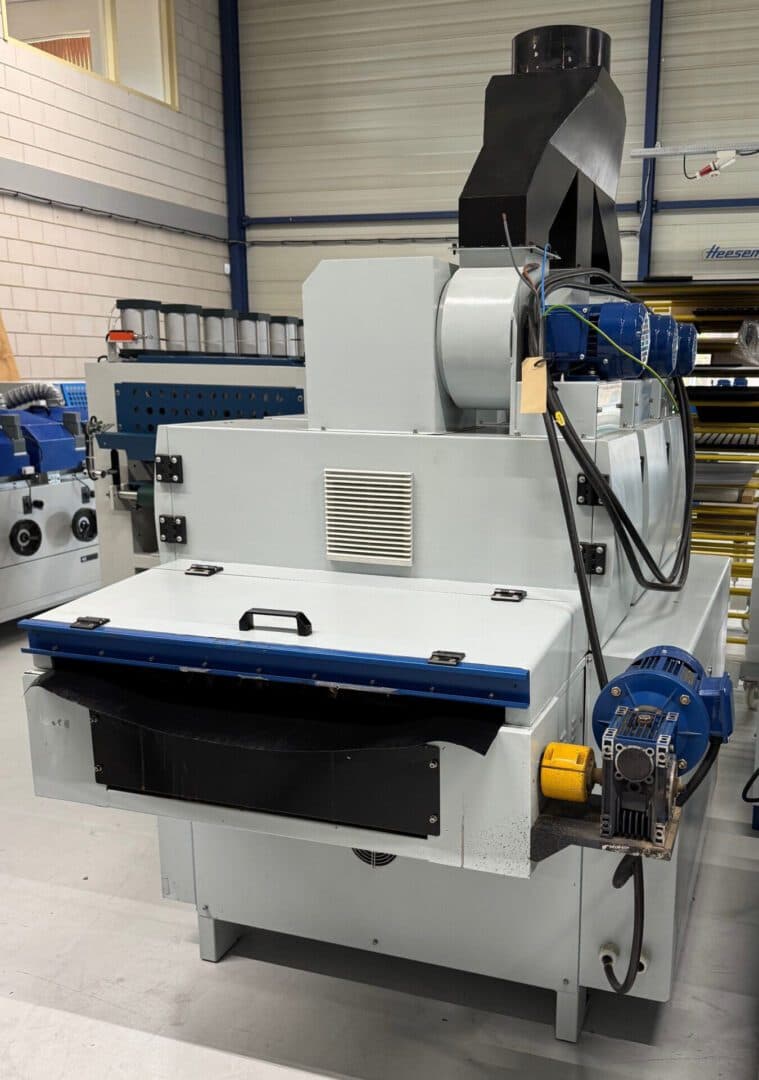

This used UV Drying Tunnel is perfect for accelerating the curing process of wood coatings such as oils and lacquers designed for UV light. It offers reliable performance and helps reduce production time while ensuring a high quality, durable finish.
UV light activates photo initiators in the coating, allowing it to cure within seconds. Depending on your application, this tunnel can be configured with one or more UV lamps to match production speed, coating thickness, and whether the product is transparent or pigmented.
The machine comes with a heat and UV resistant mesh belt. The UV lamps are adjustable in height and intensity (50 to 100 percent), and angled lamp setups are possible for curing coated sides of panels, tabletops and similar products.
This UV Drying Tunnel is fully inspected and ready for use.
Contact us for pricing or book a free demo in our Test Center.
Specifications
- Working width lamps
- 400mm
- Wavelength Mercury lamp type
- 360nm
- Wavelength Gallium lamp type
- 420nm
- Lamp power (per cm2)
- 80 - 120W/cm
- Lamp power adjustable
- 50 - 100%
- Power cooling fan lamp
- 0,75 kW eachlamp
- Connection diameter extraction
- Ø 250mm
- Adjustable conveyor speed
- 8 - 24 m/min.
- Conveyor belt power
- 0,75kW
- Frequency converter conveyor belt
- Siemens
