Drying

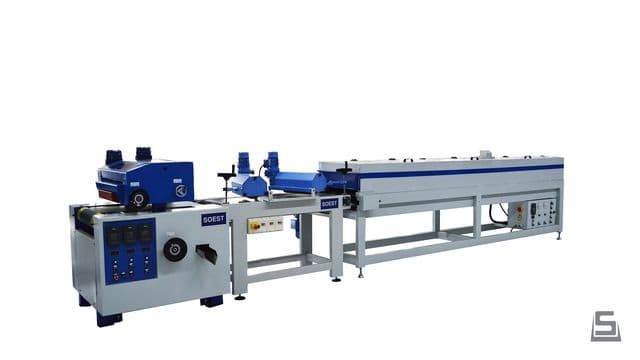

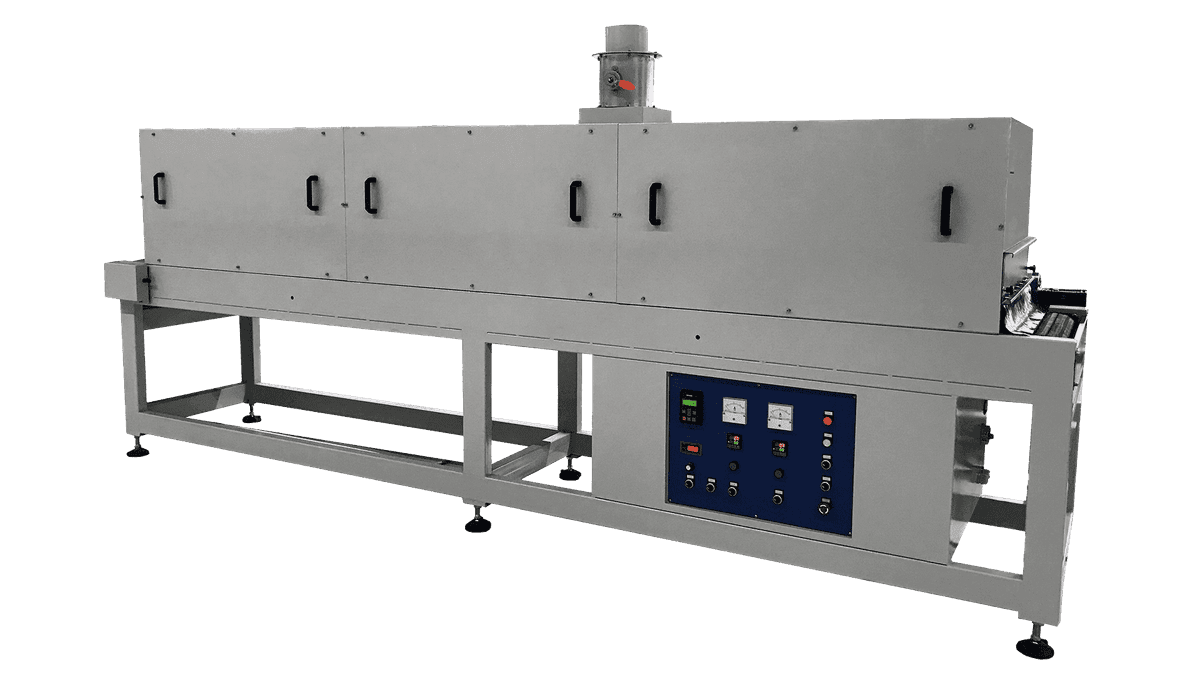

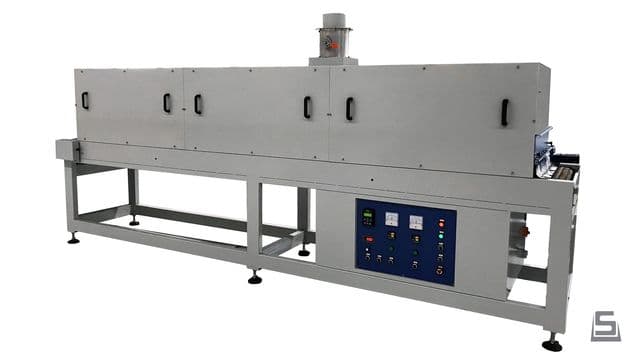

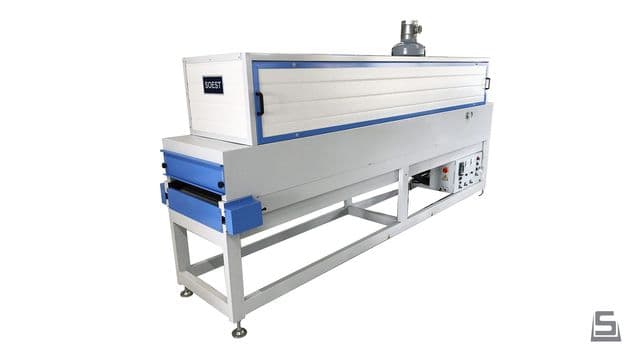

Drying tunnel Air and/or IR (Infra-Red)
Tunnels for drying and curing waterbased coating
Quickly and evenly dry coatings with our air and infrared drying tunnel. Perfect for wood finishing lines, ensuring smooth and durable coatings. Water-based coatings, such as certain stains and lacquers, can be dried using airflow, heat, and/or infrared radiation. Drying tunnels are designed to accelerate this process.
The type of coating and layer thickness determine the optimal settings for temperature, airspeed/airflow direction, and the intensity of infrared radiation required for efficient drying.
Contact us today for a quote, or visit our Test Center for a free demo!
Specifications
- Working width
- 400 – 1.400mm
- Max. temperature in tunnel
- 60ºC
- Circulation ventilators
- Depends onlength
- Air flow circulation
- 5.700 m3/heach
- Power circulation ventilators
- 0,55 kWeach
- Exhaust ventilator
- Varies
- Exhaust outlet connection
- Ø 160mm
- Power exhaust ventilator
- 0,37 kWeach
- Infra-red radiation elements
- Groups of each 8pieces
- Infra-red radiation elements power
- 0,85 kW eachpiece
- Adjustable belt speed by inverter
- 8 - 24m/min
- Motor power conveyor belt
- 0,75kW
