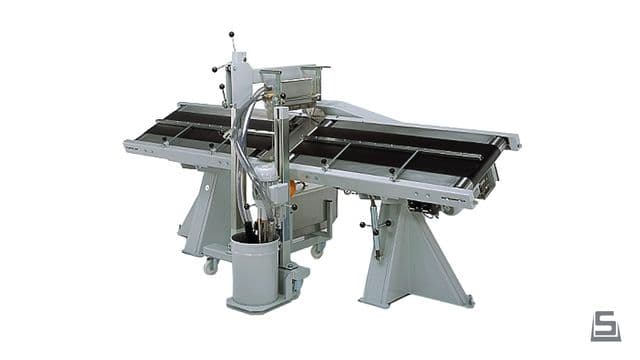

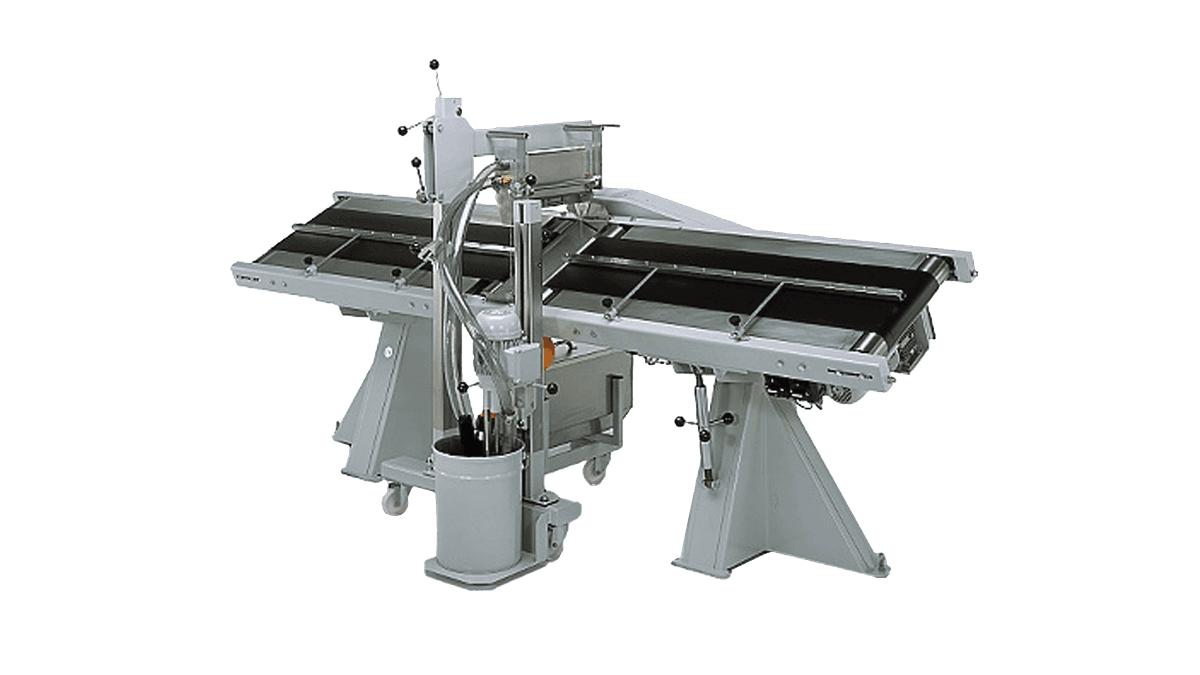

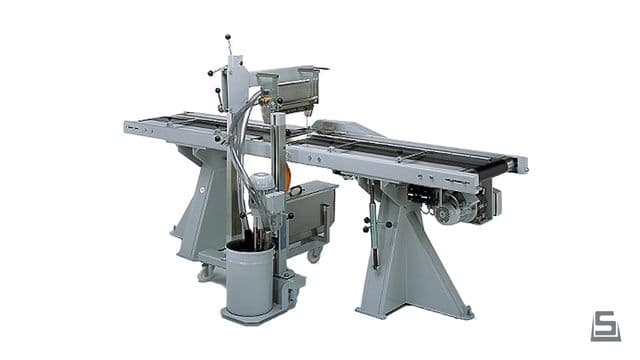

Inclined curtain coating machine - SG
For efficient and high-quality coating application
Improve coating efficiency with our inclined curtain coater, designed for uniform and controlled application on wood and MDF. Perfect for specialty finishes with minimal waste. The model SG has the possibility to incline the conveyor belt up to 30 degrees. With just one feed, the flat part and one side of the product can now be coated simultaneously. The machine is limited to a working width of 300 mm (flat part + 1 side) and in horizontal position (flat part only) 350 mm.
Contact us today for a quote, or visit our Test Center for a free demo!
Specifications
- Working height
- 940mm
- Width curtain head (Inclined use)
- 400mm
- Max. working width inclined position conveyor belt
- 300mm
- Width curtain head (Horizontal use)
- 550mm
- Max. working width horizontal position conveyor belt
- 450mm
- Power pump
- 0,75kW
- Power belt conveyor
- 1,35kW
- Mechanical speed variation on conveyor belt
- 10 - 150m/min
