Coating

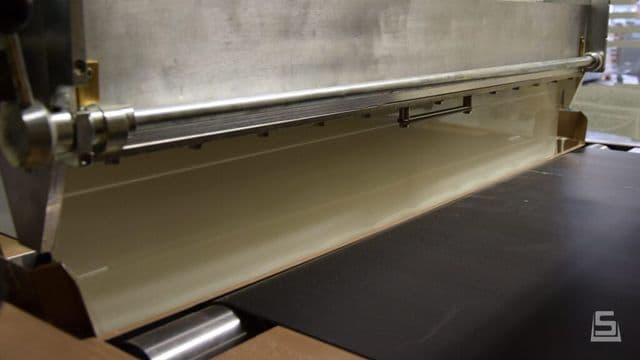

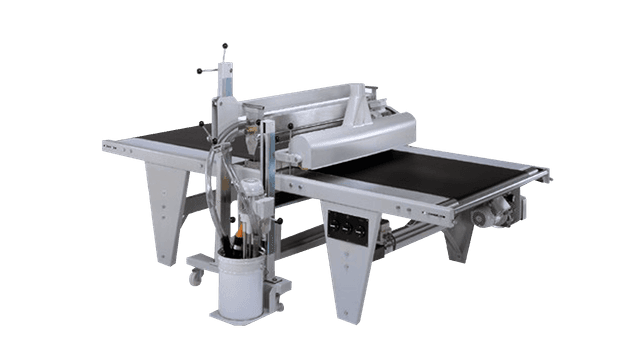

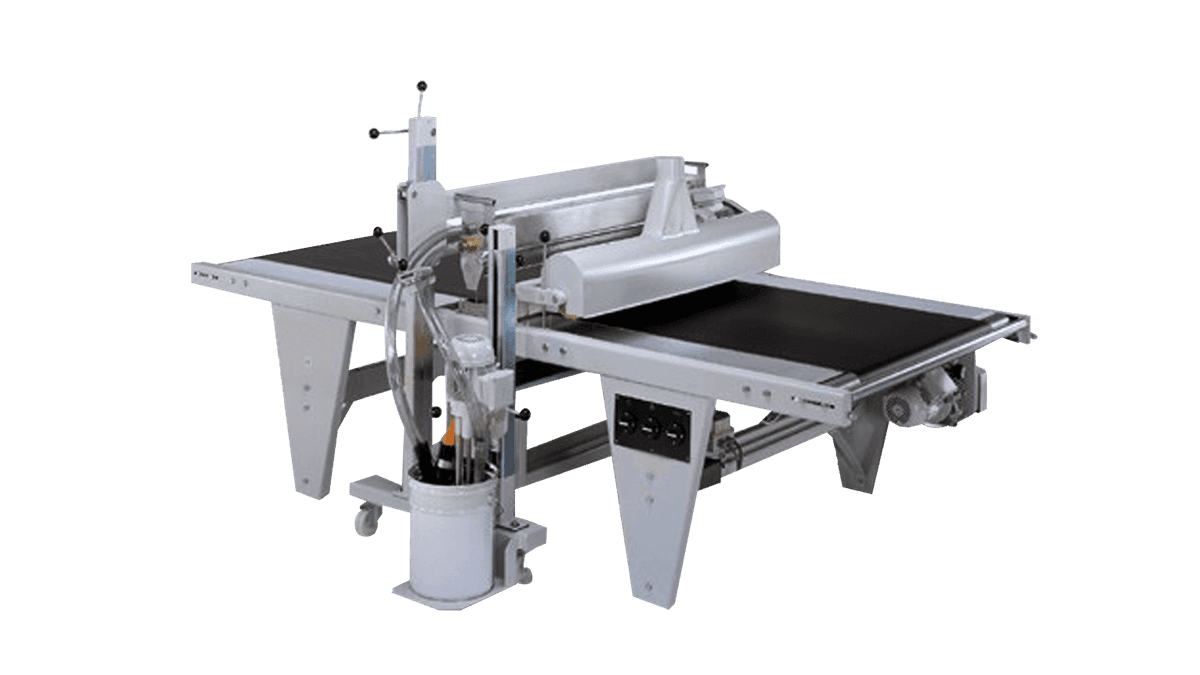

Curtain coating machine - VG
For precise industrial curtain coating
Apply smooth, high-quality coatings effortlessly with our curtain coating machine. Ideal for panels, doors, and furniture surfaces. The alternative SG model features the ability to incline the conveyor belt up to 30 degrees, so both the flat surface and one side of the product can be coated simultaneously.
Contact us today for a quote, or visit our Test Center for a free demo!
Specifications
- Working height
- 900 - 940mm
- Width of curtain head
- 550 - 1400mm
- Max. working width
- 450 - 1300mm
- Height of curtain head
- Adjustable
- Power pump
- 0,75kW
- Power belt conveyor
- 1,35kW
- Mechanical speed variation on conveyor belt
- 10 - 130m/min
- Electric classification (Not explosive proof)
- IP-55
Ready to perfect your finish?
Tell us about your material and throughput — we'll design the line around it.
Request a quote
